0505388 PANDUIT IT9115-CUV18 Brida Marron Cable Tie, 15.3P
0505388 PANDUIT IT9115-CUV18 Brida Marron Cable Tie, 15.3P
  • Control Edificios
  • VDI
  • VDI ELEMENTOS PASIVOS
Cod. 0505388   EAN 0074983653737

PANDUIT

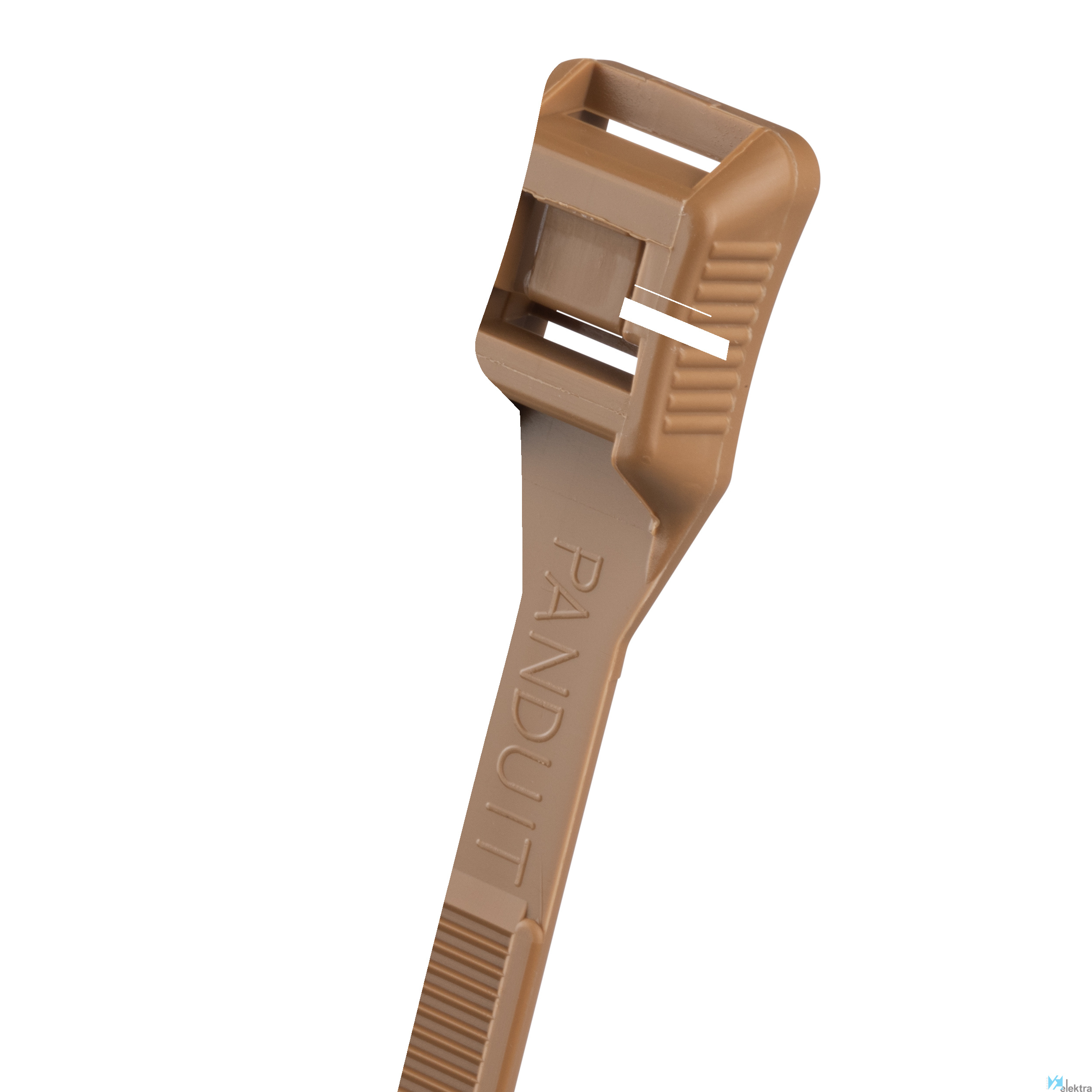

PANDUIT IT9115-CUV18 Brida Marron Cable Tie, 15.3P

2/3 Días

  (Ver +)

Múltiplo venta: 100,00 uds.

767,77€/M



Impuestos no incluidos.

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

PANDUIT IT9115-CUV18 Brida Marron Cable Tie, 15.3P

Cable Tie, In-Line, 15.3 Inches (389 mm) Length, Light-Heavy, Weather Resistant Nylon 6.6, Tan color to match the foam. Lasts 2-3 times longer than normal pigmented colors. No protruding head to cause injury since head is inverted. No protruding tie tip to cause injury since the tip is trapped between the tie and the foam. Tie will not slip on the foam since the head will indent the foam to remain captive. Wide tie body 0.35 inch (8.9 mm) for improved aesthetics. Cannot over-tension tie causing bulges in the foam. Install by hand or use Panduit GTH-E installation tool. Flexible and easy to handle and install. No need to heat weld the ends closed. No cut-off scrap pieces to handle or pick up. Strong 124 pound (552 Newton) minimum loop tensile strength. Locking wedge is protected from unlocking and from ultraviolet light exposure. Ties are installed with the teeth on the inside against the foam.

Características detalladas

Clase de inflamabilidad de material aislante V2
Transparente No
Material Plástico
Mínima resistencia a la tracción 552 N
Tipo de fijación Ninguno
Aprobación de VG No
Color Otros
Diámetro máximo del paquete 115
Tratamiento de superficie Sin tratamiento
Cierre desmontable No
Libre de halógenos Sí
Espesor de la cinta 1.7 mm
Fluorescente No
Aprobación UL No
Ancho de la banda 8.9 mm
Estable a los rayos UV según ASTM D6779 Sí
Homologación MIL No
Cierre de cinta Borde/abrazadera de plástico
Calidad del material Poliamida (PA)
Modelo Dentado externo
Área de impresión Ninguno
Temperatura de operatividad -60 ~85 °C
Temperatura de instalación -20 ~85 °C
Longitud de la banda 389 mm

Embalaje 1

  • Cantidad mínima embalaje: 1000
  • Cantidad máxima embalaje: 1000
  • Medidas: 0,47 x 0,20 x 0,07 (m)
  • Volumen: 0,00 m3
  • Peso: 0,73 kg
