0507261 PANDUIT IT9115-CUV16B Brida Magenta Cable Tie
0507261 PANDUIT IT9115-CUV16B Brida Magenta Cable Tie
  • Control Edificios
  • VDI
  • VDI ELEMENTOS PASIVOS
Cod. 0507261   EAN 0074983504053

PANDUIT

PANDUIT IT9115-CUV16B Brida Magenta Cable Tie

2/3 Días

  (Ver +)

Múltiplo venta: 100,00 uds.

767,77€/M



Impuestos no incluidos.

Si estás buscando algún producto con urgencia y no lo encuentras, ponte en contacto con nosotros y trataremos de conseguírtelo rápidamente.

Puedes escribirnos un email o llamarnos por teléfono:

Buscar Punto de Venta

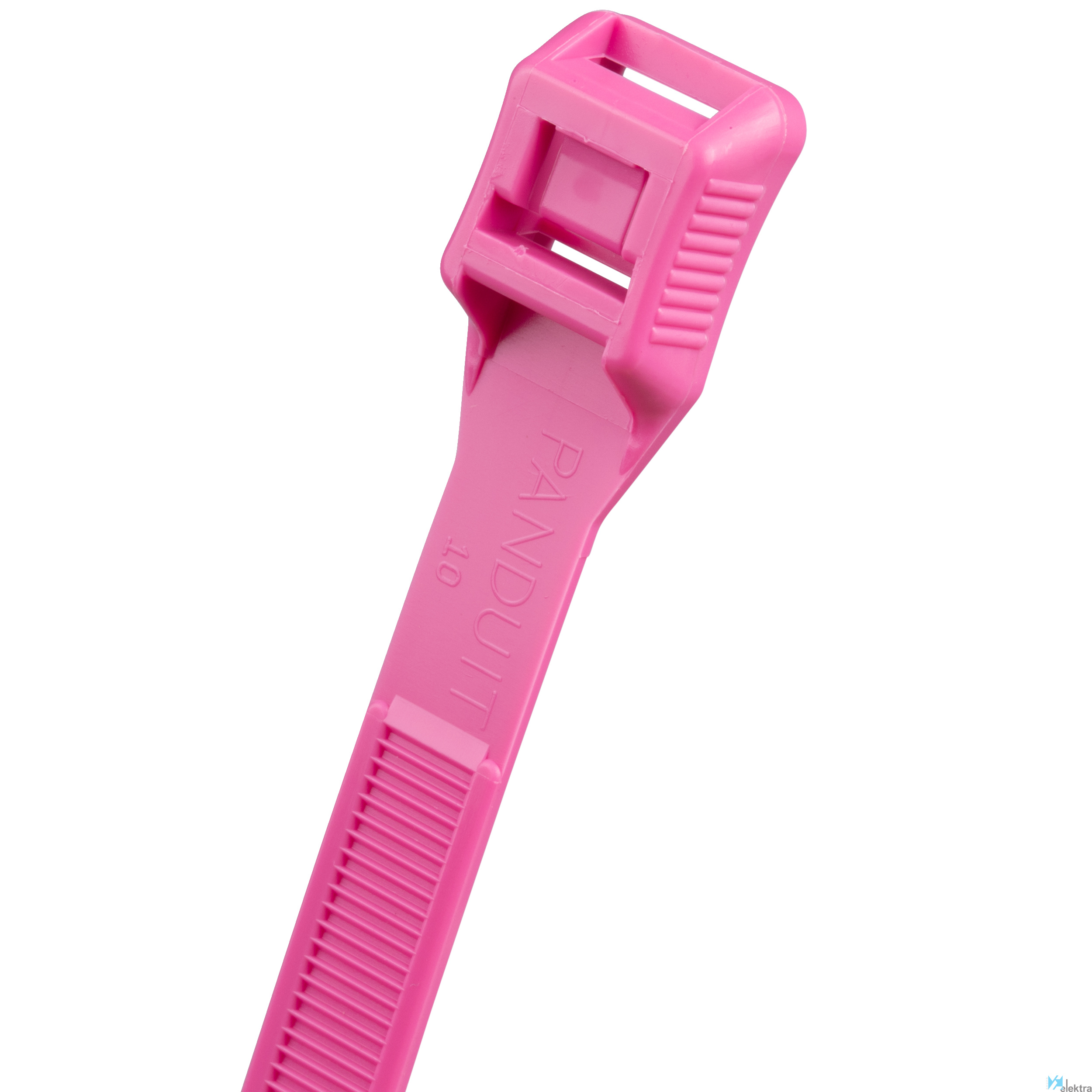

PANDUIT IT9115-CUV16B Brida Magenta Cable Tie

Cable Tie, In-Line, 15.3 Inches (389 mm) Length, Light-Heavy, Weather Resistant Nylon 6.6, Magenta color to match the foam. Lasts 2-3 times longer than normal pigmented colors. No protruding head to cause injury since head is inverted. No protruding tie tip to cause injury since the tip is trapped between the tie and the foam. Tie will not slip on the foam since the head will indent the foam to remain captive. Wide tie body 0.35 inch (8.9 mm) for improved aesthetics. Cannot over-tension tie causing bulges in the foam. Install by hand or use Panduit GTH-E installation tool. Flexible and easy to handle and install. No need to heat weld the ends closed. No cut-off scrap pieces to handle or pick up. Strong 124 pound (552 Newton) minimum loop tensile strength. Locking wedge is protected from unlocking and from ultraviolet light exposure. Ties are installed with the teeth on the inside against the foam.

Características detalladas

Espesor de la cinta 1.7 mm
Tratamiento de superficie Sin tratamiento
Aprobación de VG No
Longitud de la banda 389 mm
Cierre de cinta Borde/abrazadera de plástico
Calidad del material Poliamida (PA)
Libre de halógenos Sí
Área de impresión Ninguno
Clase de inflamabilidad de material aislante V2
Color Otros
Diámetro máximo del paquete 115
Aprobación UL No
Homologación MIL No
Transparente No
Fluorescente No
Temperatura de operatividad -60 ~85 °C
Material Plástico
Ancho de la banda 8.9 mm
Estable a los rayos UV según ASTM D6779 Sí
Cierre desmontable No
Mínima resistencia a la tracción 552 N
Modelo Dentado externo
Temperatura de instalación -20 ~85 °C
Tipo de fijación Ninguno

Embalaje 1

  • Cantidad mínima embalaje: 1000
  • Cantidad máxima embalaje: 1000
  • Medidas: 0,41 x 0,24 x 0,04 (m)
  • Volumen: 0,00 m3
  • Peso: 0,73 kg
